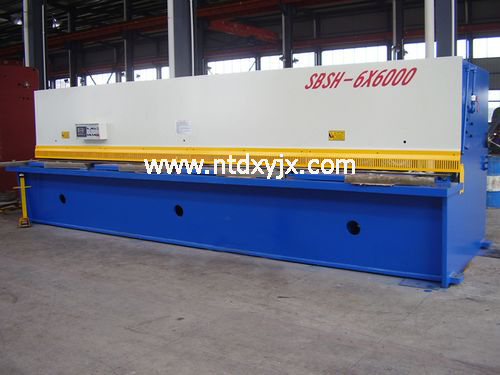

产品简介：QC12Y系列液压摆式剪板机
|
===== 性 能 特 点 ===== |
|
※ 采用钢板焊接结构，液压传动，蓄能器回程，操作方便，性能可靠，外形美观。 |
|
※ 设有灯光对线装置，并能无级调节上刀架的行程量 |
|
※ 采用栅栏式人身安全保护装置。 |
|
※ 后挡料尺寸及剪切次数有数字显示装置。
|
型 号 |
可剪规格 |
剪切角度 |
行程
次数 |
后挡料
调节范围 |
主电机
功率 |
重量 |
外形尺寸
L×W×H |
|
QC12Y-4×2000 |
4×2000 |
1°30' |
≥21 |
20-600 |
7.5 |
4,650 |
2540×1610×1650 |
|
QC12Y-4×2500 |
4×2500 |
1°30' |
≥18 |
20-600 |
7.5 |
5,500 |
3140×1610×1650 |
|
QC12Y-4×3200 |
4×3200 |
1°30' |
≥14 |
20-600 |
7.5 |
6,600 |
3840×1610×1650 |
|
QC12Y-4×4000 |
4×4000 |
1°30' |
≥10 |
20-600 |
7.5 |
7,550 |
4680×1705×1700 |
|
QC12Y-4×5000 |
4×5000 |
1°30' |
≥10 |
20-600 |
7.5 |
16,000 |
5786×2200×2160 |
|
QC12Y-6×2000 |
6×2000 |
1°30' |
≥22 |
20-600 |
7.5 |
5,100 |
2540×1960×1650 |
|
QC12Y-6×2500 |
6×2500 |
1°30' |
≥18 |
20-600 |
7.5 |
5,500 |
3140×1610×1650 |
|
QC12Y-6×3200 |
6×3200 |
1°30' |
≥14 |
20-600 |
7.5 |
6,600 |
3840×1610×1650 |
|
QC12Y-6×4000 |
6×4000 |
1°30' |
≥10 |
20-600 |
11 |
8,500 |
4640×1705×1700 |
|
QC12Y-6×5000 |
6×5000 |
1°30' |
≥10 |
20-750 |
11 |
19,700 |
5786×2200×2160 |
|
QC12Y-6×6000 |
6×6000 |
1°30' |
≥7 |
20-800 |
15 |
25,000 |
6900×2570×2280 |
|
QC12Y-8×2500 |
8×2500 |
1°30' |
≥14 |
20-600 |
11 |
5,500 |
3140×1610×1650 |
|
QC12Y-8×3200 |
4×2000 |
1°30' |
≥12 |
20-600 |
11 |
6,600 |
3840×1610×1650 |
|
QC12Y-8×4000 |
8×4000 |
1°30' |
≥8 |
20-600 |
11 |
8,500 |
4680×1705×1700 |
|
QC12Y-8×5000 |
8×5000 |
1°30' |
≥7 |
20-750 |
15 |
21,000 |
5786×2252×2310 |
|
QC12Y-8×6000 |
8×6000 |
1°30' |
≥5 |
20-750 |
15 |
28,000 |
6900×2570×2280 |
|
QC12Y-10×2500 |
10×2500 |
2° |
≥10 |
20-600 |
15 |
7,500 |
3350×1750×1950 |
|
QC12Y-10×3200 |
10×3200 |
1°48' |
≥10 |
20-600 |
15 |
9,500 |
3975×1750×1950 |
|
QC12Y-10×4000 |
10×4000 |
2° |
≥12 |
20-800 |
18.5 |
15,000 |
4800×2280×2100 |
|
QC12Y-12×2500 |
12×2500 |
2° |
≥11 |
20-600 |
15 |
7,500 |
3350×1750×1950 |
|
QC12Y-12×3200 |
12×3200 |
1°30' |
≥10 |
20-800 |
18.5 |
12,500 |
4020×2050×2230 |
|
QC12Y-12×4000 |
12×4000 |
2° |
≥7 |
20-800 |
18.5 |
18,000 |
4820×2300×2300 |
|
QC12Y-16×2500 |
16×2500 |
2° |
≥8 |
20-800 |
18.5 |
15,000 |
3400×2060×2350 |
|
QC12Y-16×3200 |
16×3200 |
2° |
≥7 |
20-800 |
18.5 |
16,300 |
4062×2300×2350 |
|
QC12Y-16×4000 |
16×4000 |
2° |
≥5.7 |
25-800 |
30 |
20,000 |
4850×2300×2300 |
|
QC12Y-20×2500 |
20×2500 |
2°30' |
≥6 |
20-800 |
37 |
14,000 |
3440×2088×2570 |
|
QC12Y-20×3200 |
20×3200 |
2°30' |
≥5 |
35-800 |
37 |
20,000 |
4150×2310×2730 |
|
QC12Y-20×4000 |
20×4000 |
2°30' |
≥5 |
30-1000 |
37 |
25,000 |
4920×2400×2770 |
|
QC12Y-20×5000 |
20×5000 |
2°30' |
≥4 |
20-800 |
37 |
30,000 |
5900×3000×3300 |
|
QC12Y-25×2500 |
25×2500 |
3° |
≥5 |
40-800 |
37 |
16,500 |
3450×2300×2730 |
|
QC12Y-25×3200 |
25×3200 |
3° |
≥4 |
40-1000 |
37 |
26,000 |
4100×2400×2770 |
|
|
 |
|
 |
|
|
